22 Circuit Ford Wire Harness


Product Description

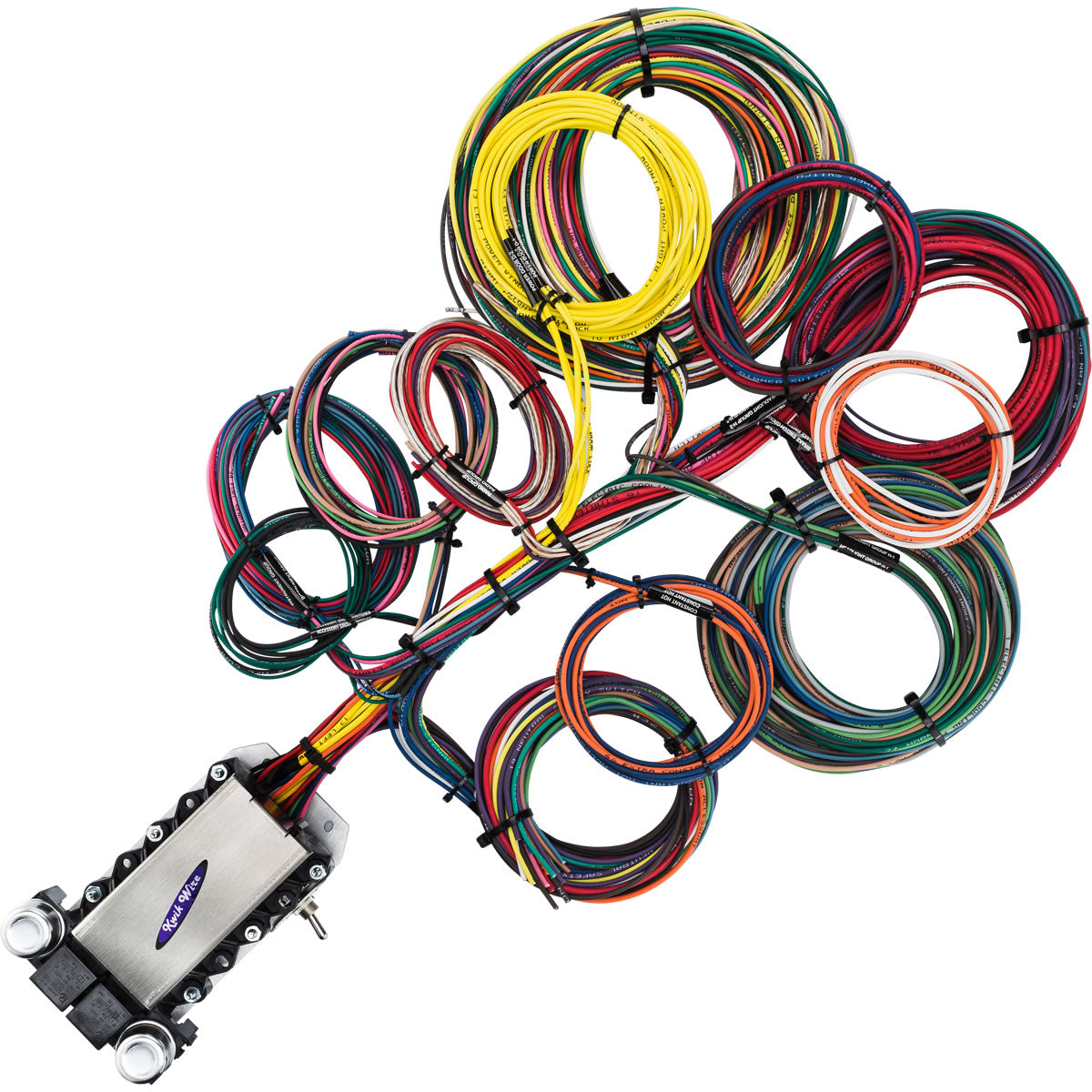

Our 22 Circuit Ford Wire Harness is designed as a cut-to-fit universal complete restoration wire harness. These kits will support your entire electrical system from headlights to tail lights. The 22 Circuit Ford Wire Harness supports power windows & power door locks.

Whether you’re doing a brand new restoration from the ground up or just replacing the electrical wiring, our kits will provide an easy to install solution for your project!

Installation Support

Instruction Book

Every restoration wiring kit comes with an easy-to-use instruction book that walks you through every step of the installation. Our wiring kits are engineered for both the first time installer and the experienced auto electrician.

Toll-Free Phone Support

Along with easy-to-use instructions, every wire harness comes with toll-free installation support where you’ll be able to talk directly to our installation support team in Wisconsin.

Included Circuits

  • Hazard
  • Horn
  • Dome / Trunk Light
  • Cigarette Lighter
  • Fuel
  • Wiper / Electric Choke
  • Gauges
  • Electric Fan
  • Power Windows
  • Stop
  • Power Door Locks
  • Back-Up / Cruise
  • Headlights
  • Accessory
  • Radio Const. / Pwr. Ant.
  • Accessory
  • A/C + Heat
  • Radio Ignition
  • Turn
  • Coil
Made in USA

Proudly Designed, Engineered & Manufactured in the USA

All of our restoration wiring harnesses are manufactured in the USA. We’ve been doing it this way since our start in 1991.

We strongly believe in the value of maintaining American jobs and understand the quality of American made products can’t be matched anywhere else.

Adaptive Fit For Virtually Any Model

Our kits are engineered to be compatible with virtually every model Ford manufactured before 1979.

Almost all electrical components work the same across all makes & models which allows a Kwik Wire kit to adapt to your project. The electrical core of components like headlights, tail lights, gauges, starters, alternators, etc, work the same regardless if you’re building a GM or a Ford. They all need power and grounding. We engineer our kits to be adaptive to the vehicle it’s being installed which makes installation easy.

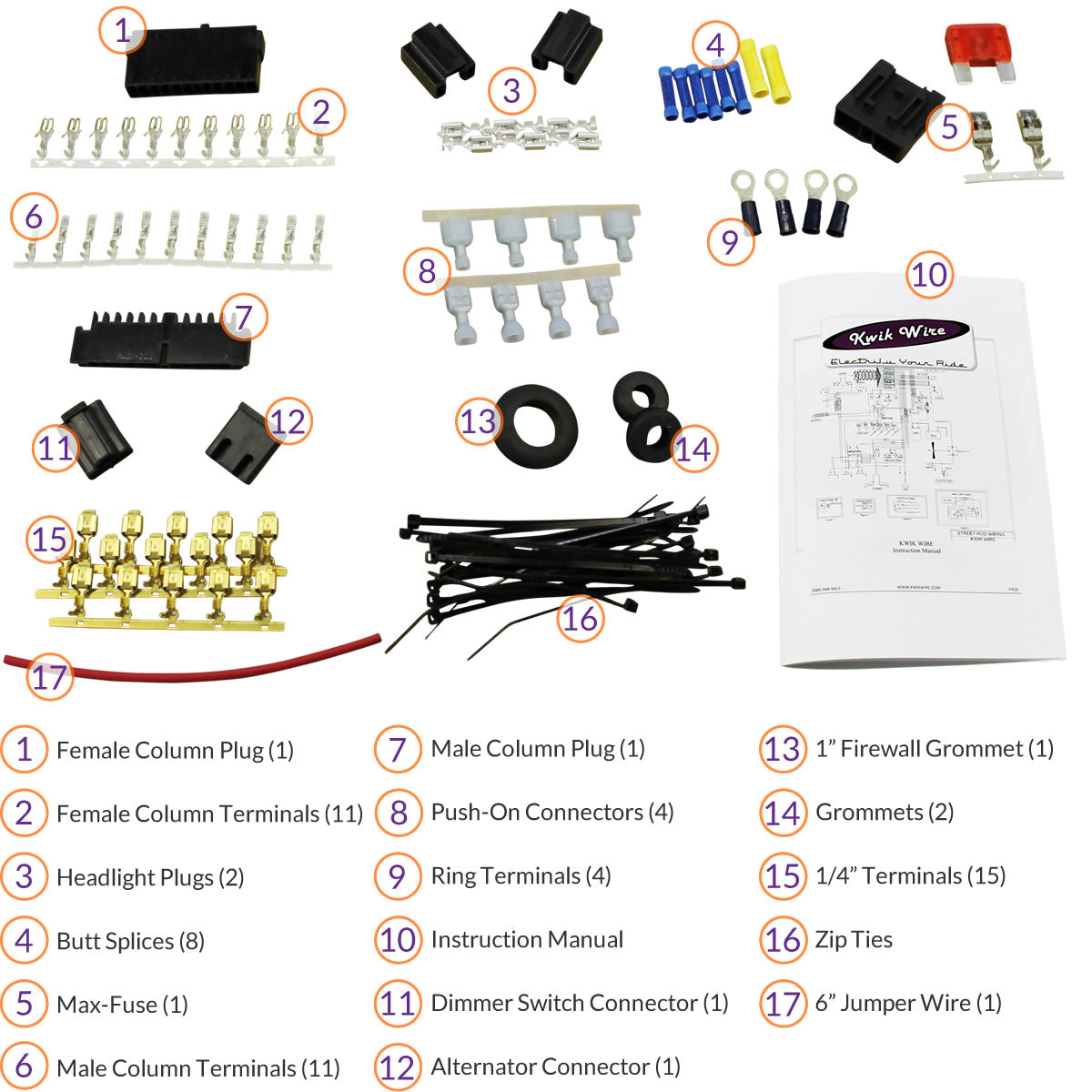

Our Ford wire harnesses include components to make the kit adaptable to your Ford model.

High Quality Wire

We only use the highest quality GXL coated stranded wire in all of our restoration wire harnesses. GXL wire is resistant to moisture, grease, oil, gasoline, most acids and solvents. It has a temperature rating of -59°F (-51°C) to 257°F (125°C). Stranded wire enables more flexibility in routing of the wire and offers more durability for applications where vibration and occasional movement of the wire could cause breakage of a stiffer solid wire or rigid stranded conductors.

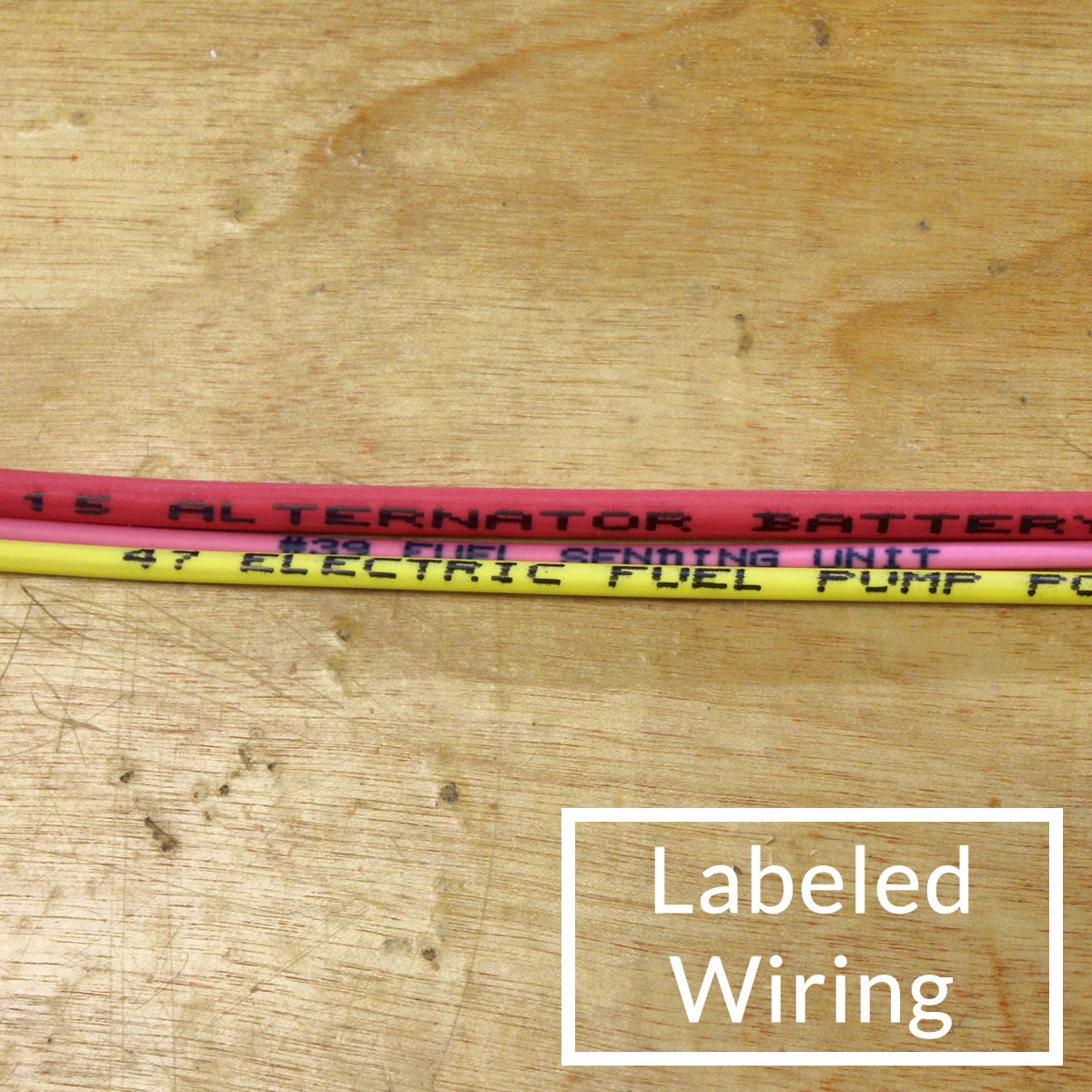

To assist with the install, we also print the number and destination of every wire included in the kit every 4 inches the entire length of the wire. The number assigned to the circuit as well as the label are indicated in the instruction book as well, so you'll never lose track of what wire goes where!

Labeled Every 4 Inches

Unique Features

The Best of the Best

The Best of the Best All of our kits were designed from the ground up with the goal of providing a quality American Made product that was affordable to our customers. Our kits are engineered and built as a universal cut-to-fit harness that will fit in virtually every make and model restoration while ensuring a perfect fit for your vehicle every time.

All of our harnesses come with a variety of features that all help make it the best kit on the market for automotive restoration. Below is a list of some of the unique features built into the design of our harnesses.

  • Engineered & Manufactured in the USA

    Engineered & Manufactured in the USA

    Our kits were designed from the ground up and each kit includes 25+ years of experience in the industry of engineering enhancements. Our wiring kits have also been proudly manufactured in the USA since our beginning in 1991.

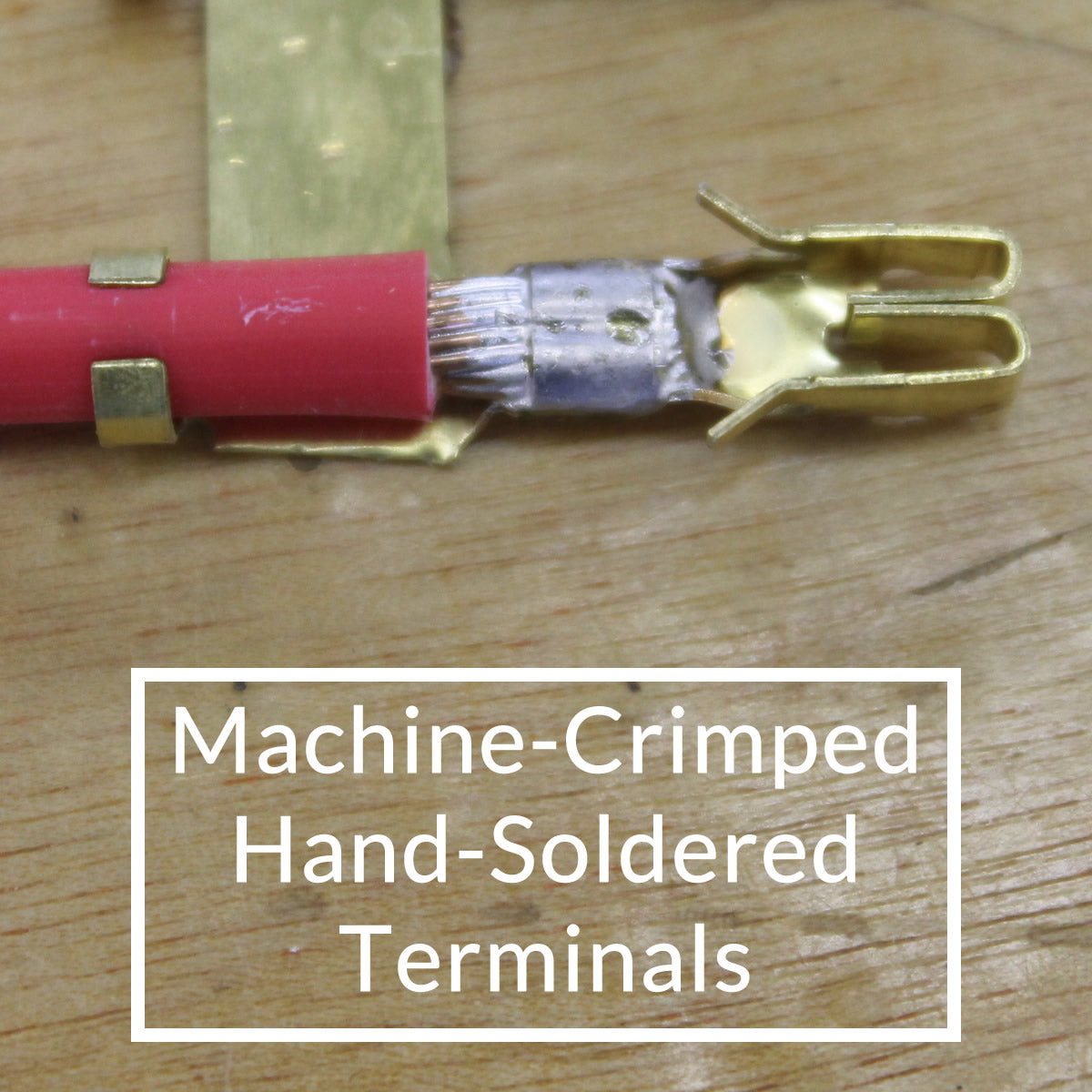

  • Machine Crimped / Hand-soldered

    Machine Crimped / Hand-soldered

    We take the time to machine crimp & hand-solder every single terminal in our wire harness. You won’t find another kit on the market that gives this much attention to detail & quality to every single wire harness produced.

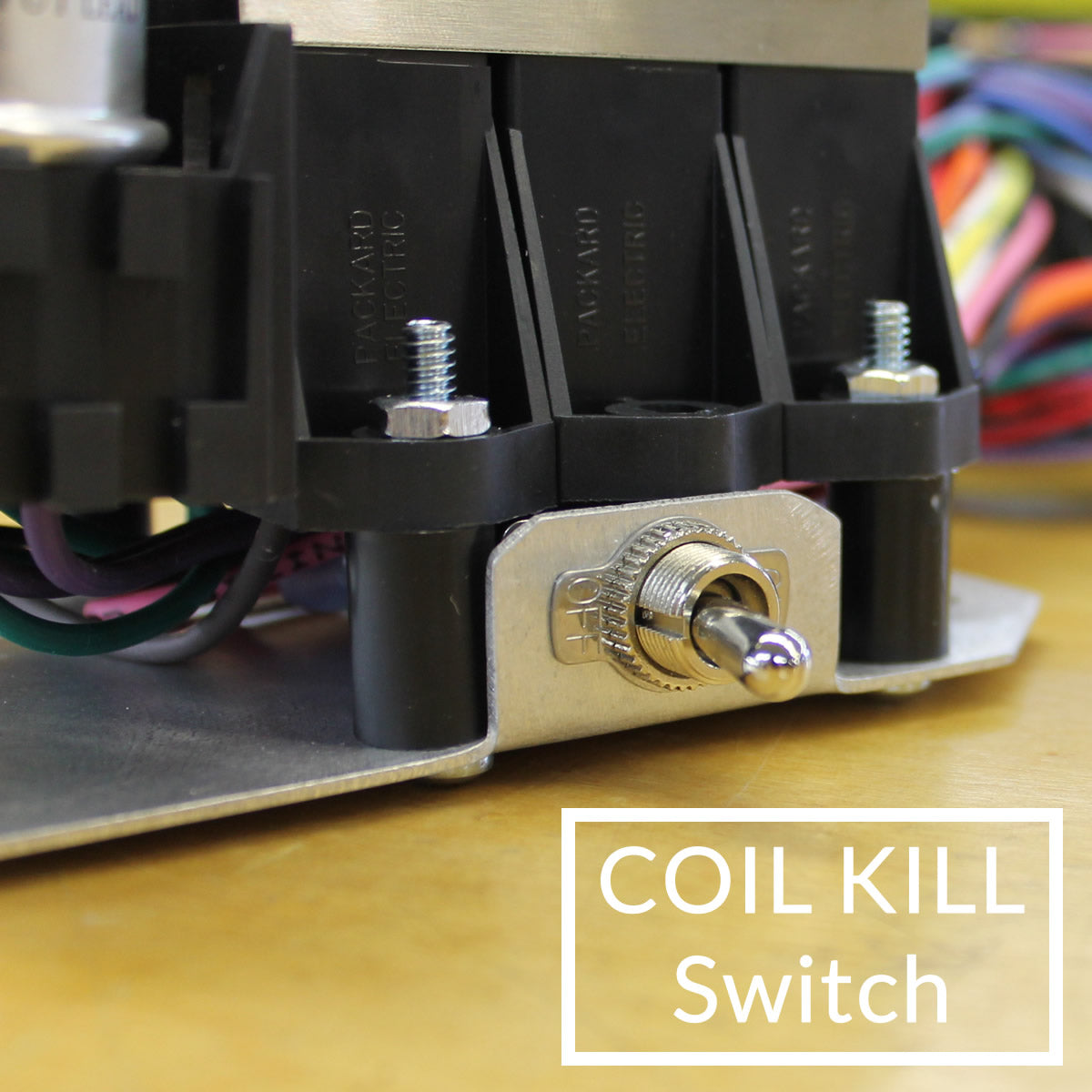

  • Coil Kill Switch

    Coil Kill Switch

    A coil kill switch is included with all of our standard wiring kits. When turned off, this switch keeps power from flowing to the coil of your car to keep it from starting. It’s a great theft resistance feature you can use during storage or at a car show.

  • Universal Fit

    Universal Fit

    Our kits are designed to be a universal fit. The truth is that almost all components hook-up the same regardless of make. Headlights work the same as they do in Ford vehicles as the do in GM builds. Our kits have been put in just about every make and model you can think of!

  • Instruction Book Included

    Instruction Book Included

    An instruction book is included with every wire harness that walks through every single wire of the install. It’s easy to use and designed for even first-timers to use!

  • Toll-free Tech Support

    Toll-free Tech Support

    We understand that not everybody has a degree in automotive wiring, so we’re here to help you out if you run into any snags. Give us a call to talk to one of our expert tech’s. You’ll be talking right to the guys who actually make the kits in Wisconsin!

  • Thicker Gauge Wire

    Thicker Gauge Wire

    We pride ourselves by producing a quality product, and that starts with using quality materials. We use more copper in our kits than many of our competitors. This helps ensure the safety of our product and longevity for years to come.

  • Plenty of Wire Included

    Plenty of Wire Included

    Our wiring harnesses come with plenty of wiring for your build. The kits are designed as a cut-to-fit harness to ensure a perfect fit every time. Each kit comes with 25 ft of wire to the tail group so you’ll most likely have plenty of left-overs when you’re done.

  • Pre-wired Horn Relay

    Pre-wired Horn Relay

    Beep Beep! All of our kits come with a horn relay pre-wired into the kit so you don’t have to figure out how to wire it up later. The kit also comes with instructions on how to hook it up. You’ll be honking away in no time!

  • Pre-wired Electric Fan Relay

    Pre-wired Fan Relay

    Standard wire harnesses come with a pre-wired electric fan relay in the kit so you don’t have to figure out how to wire it up later. The kit also comes with instructions on how to hook it up. It's simple to keep that engine cool!

  • Speaker Wire Included

    Speaker Wire Included

    We include speaker wire with all of our standard wire harnesses. The plastic jacket around the speaker wire helps to deliver high-quality undistorted signals to and from all of your audio equipment.

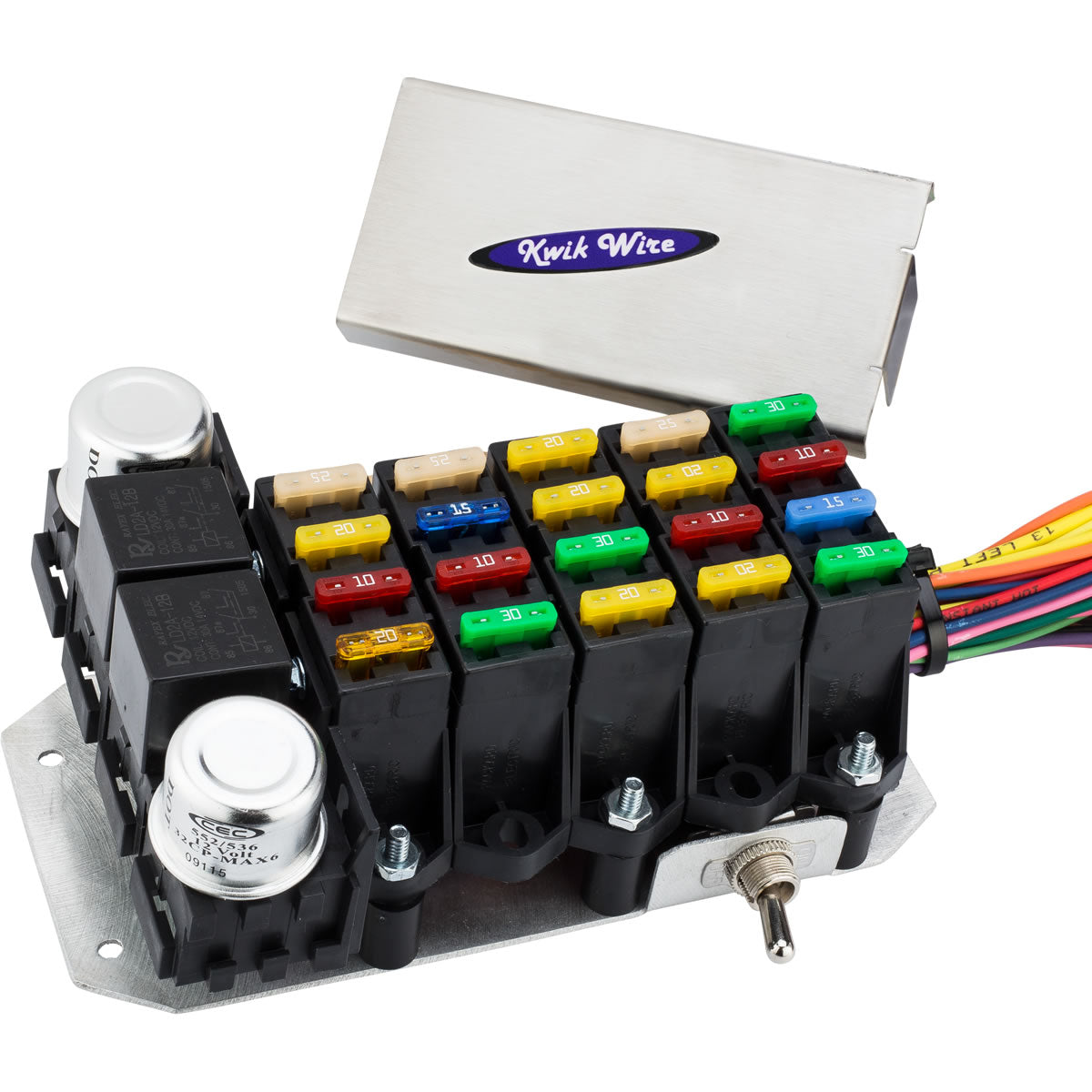

  • Stainless Steel Fuse Cover

    Stainless Steel Fuse Cover

    All of our standard wiring harnesses come with a brushed stainless steel cover to protect the fuses. Labels indicating what each fuse is for are also located on the underside of the cover. Oh yeah...and it looks great too!

  • Aluminum Mounting Plate

    Aluminum Mounting Plate

    Our standard kits come with an aluminum mounting plate installed to the underside of the the fuse block. This plate helps protect the wires where they go into the block as well as allow you to mount the fuse panel securely in your vehicle.

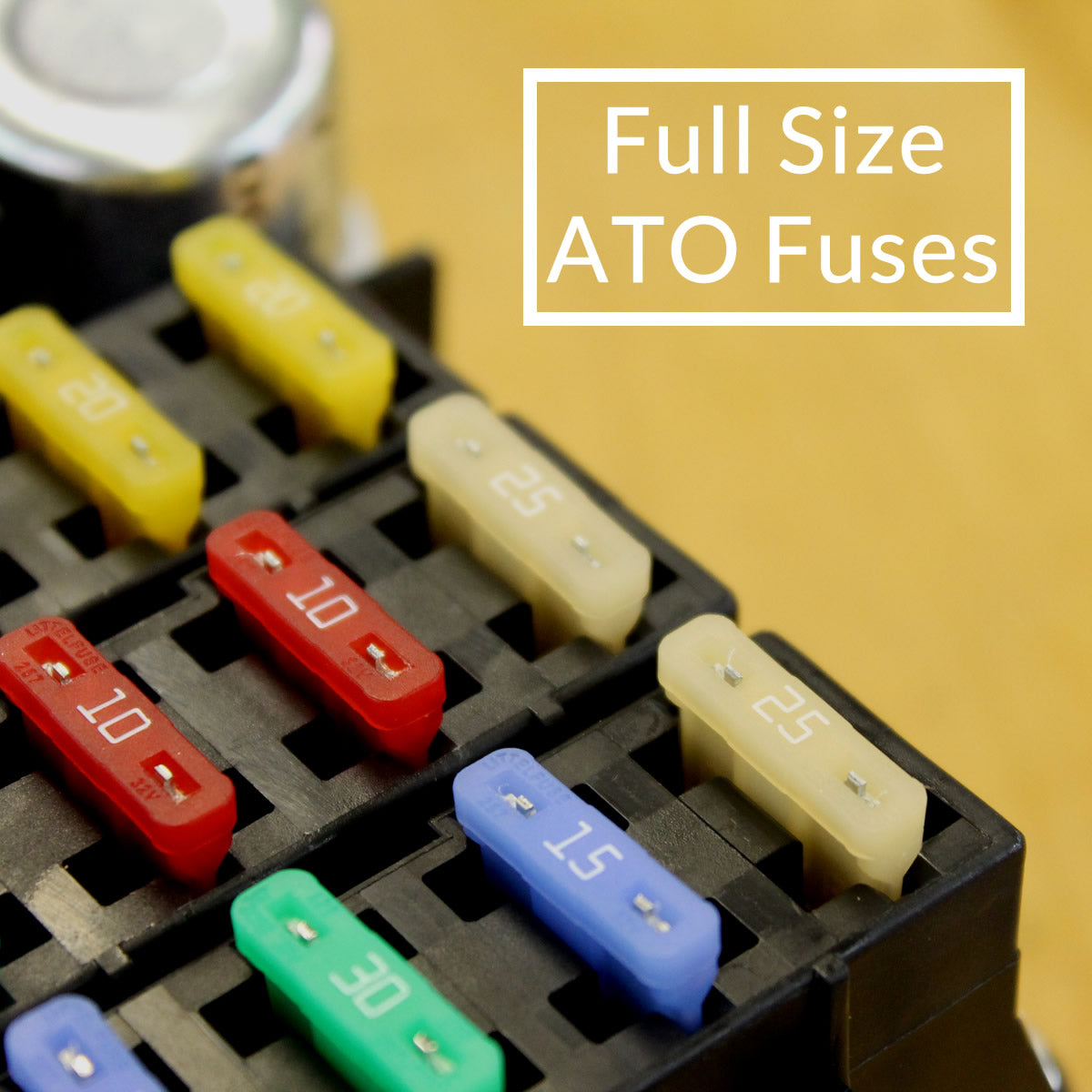

  • Full-size ATO Fuses

    Full-size ATO Fuses

    Some kits on the market cut corners by offering a fuse block that uses mini fuses. Mini fuses can be hard to come by when you need to replace a fuse the most. Our kits use full-size ATO fuses that you’ll be able to find at just about any gas station or hardware store.


22 Circuit Ford Wire Harness Reviews

Based on 2 reviews

For what you pay it is a great product and took alot of the headache out of my project

Posted by 65fairlaner on 29th Mar 2015

It is basically dummy proof, your idiot cousin could help you and not mess it up. It was fast and easy installation comes with everything you need, and because of it my project was wired in only a couple of hours.

Good kit for the money

Posted by Unknown on 12th Sep 2013

I bought this kit based on the price and a suggestion on a Ford website. With any product there are pros and cons. Lets start with the cons. This is supposed to be a complete wiring harness however it is really only the power wires so do not cut up your old wiring harness. You will need certain wires and connectors such as the part of the exisiting harness that goes to your blower motor and resistor. The kit does not mention anywhere that the gauges in my 1973 Ford are 6 volt gauges and require a resistor instead of the 12 volt gauge wire included in the kit. Unfortunately I cut the exisiting resistor wire not knowing. The connectors included are not nearly enough to really get you started so have plenty on hand. The turnsignal connector they mention is a GM connector not a Ford connector so it is useless on my Ford anyway. The instructions give you a good reference point for where the wires go however some of the colors appeared to be wrong where they tell you how to wire up the turn signal switch so be sure to have wiring diagrams and also look at the wiring instructions online for a Painless wiring kit. The kit also does not include wiring to hook up the ammeter instead the instructions show a voltmeter so you need to be careful as to which you have when wiring. Now for the pros. The kit comes will packaged and the wiring is organized into nice bundles to help you neatly install the kit and not wind up with a whole mess of wires everywhere. The chrome cover is a nice touch for the fuse box and the kill switch is a nice option. The 22 circuits gives you more than enough options to hook up all your accessories. I did not need all 22 circuits but it is nice to know that in the future I have some options for hookups if I need them. All in all this is a really good kit for the money. I will say it is not for someone who does not understand wiring at all. You will require some knowledge of wiring diagrams for your vehicle. If you are looking to save some money over the more expensive kits out there and want to gain more knowledge of the electrical system of your car this is the kit to buy. Most importantly take your time installing this kit because a few things tend to get confusing. Overall this is a great kit and I would definitely recommend it. I would've given it 5 stars if it wasn't for the misleading colors in the instructions and not mentioning the resistor needed for my gauges so I am currently without a working fuel gauge until I get the additional parts I needed to order.
